ME 102, Foundations of Product Realization Fall 2022

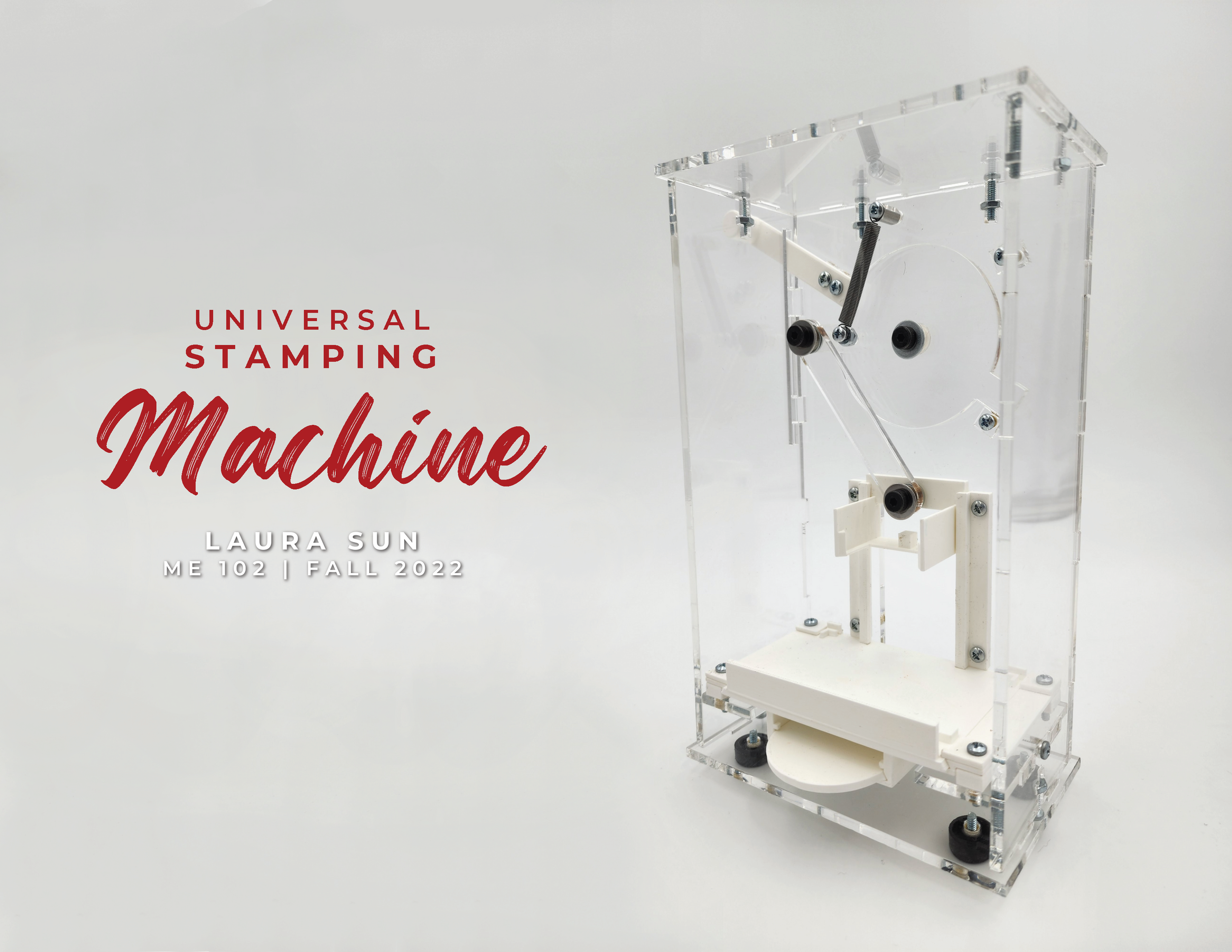

UNIVERSAL STAMPING MACHINE

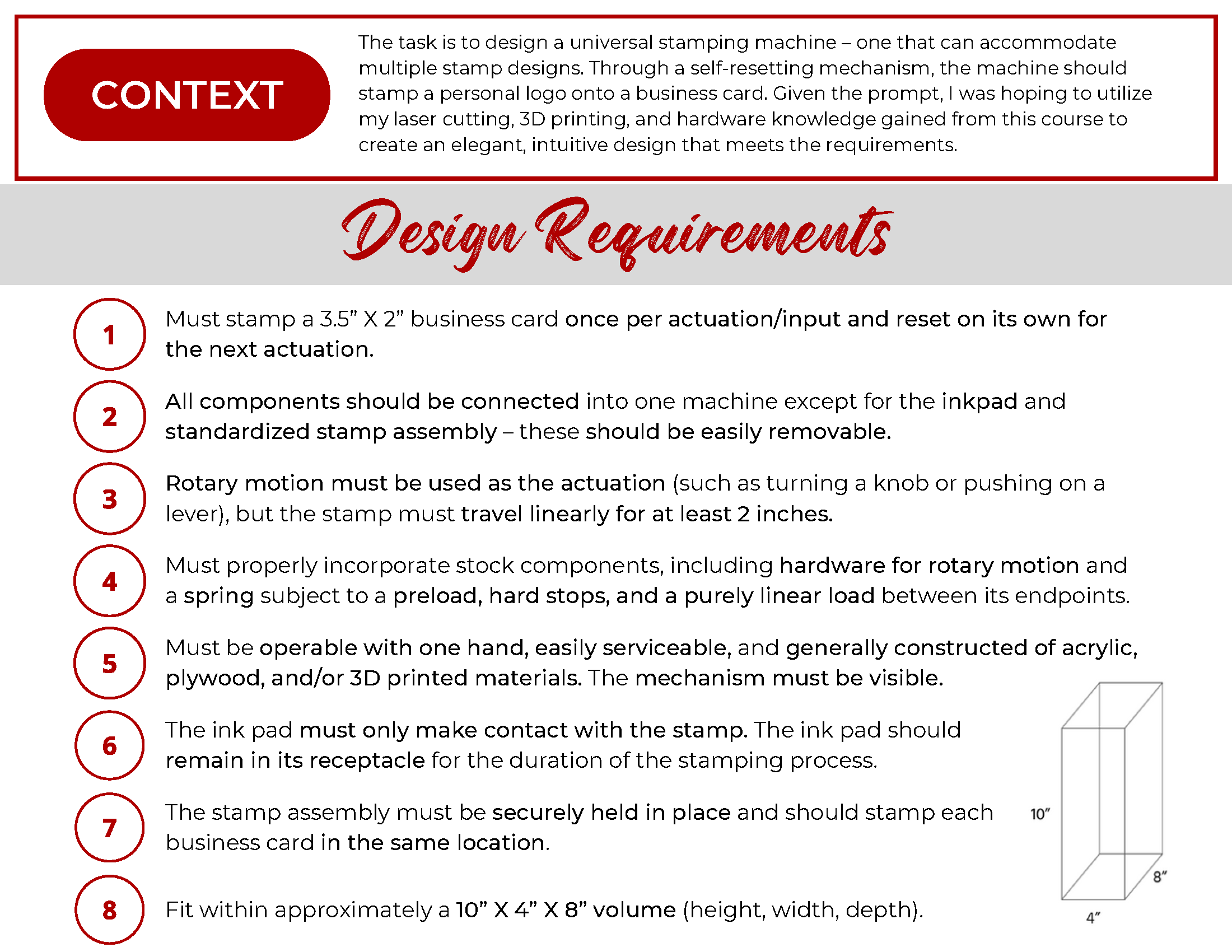

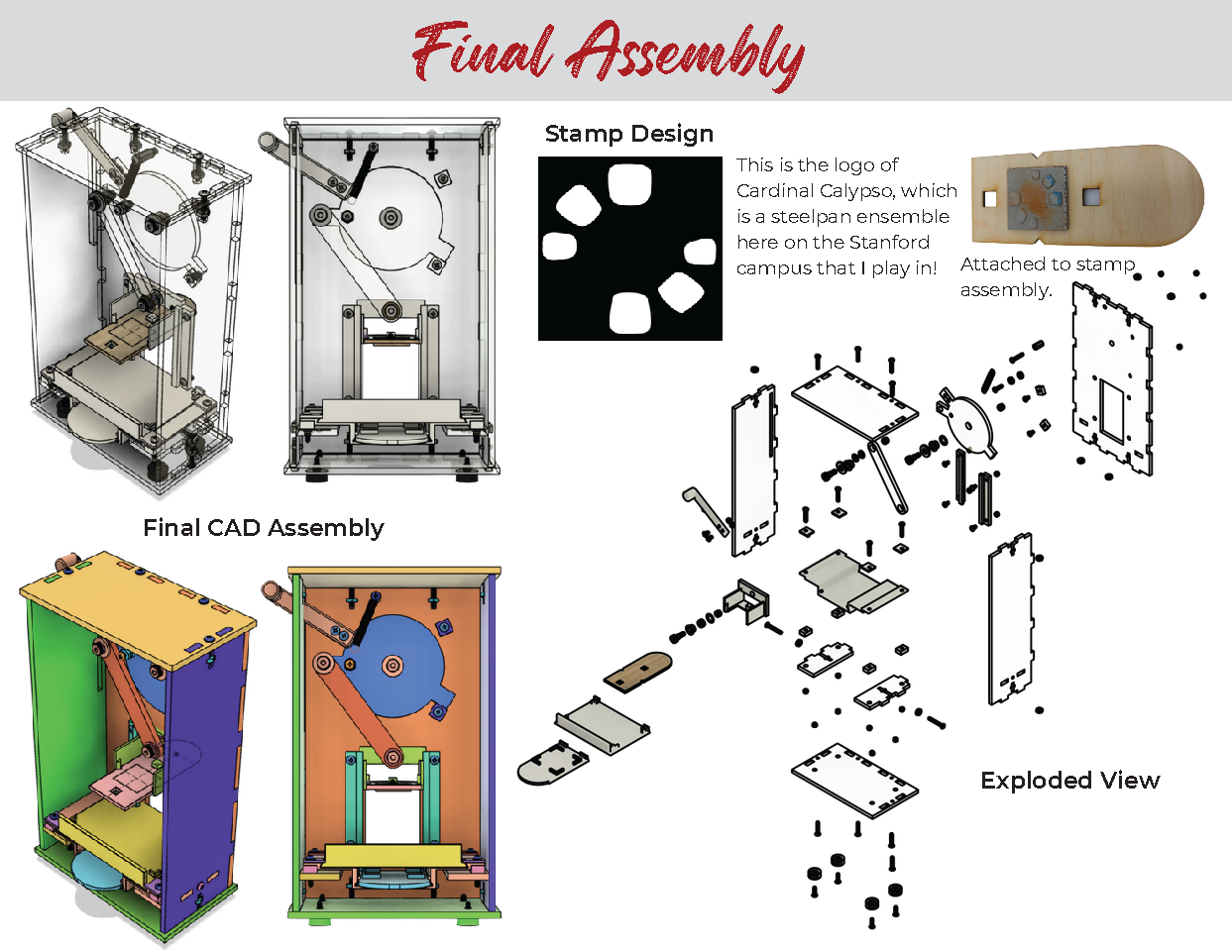

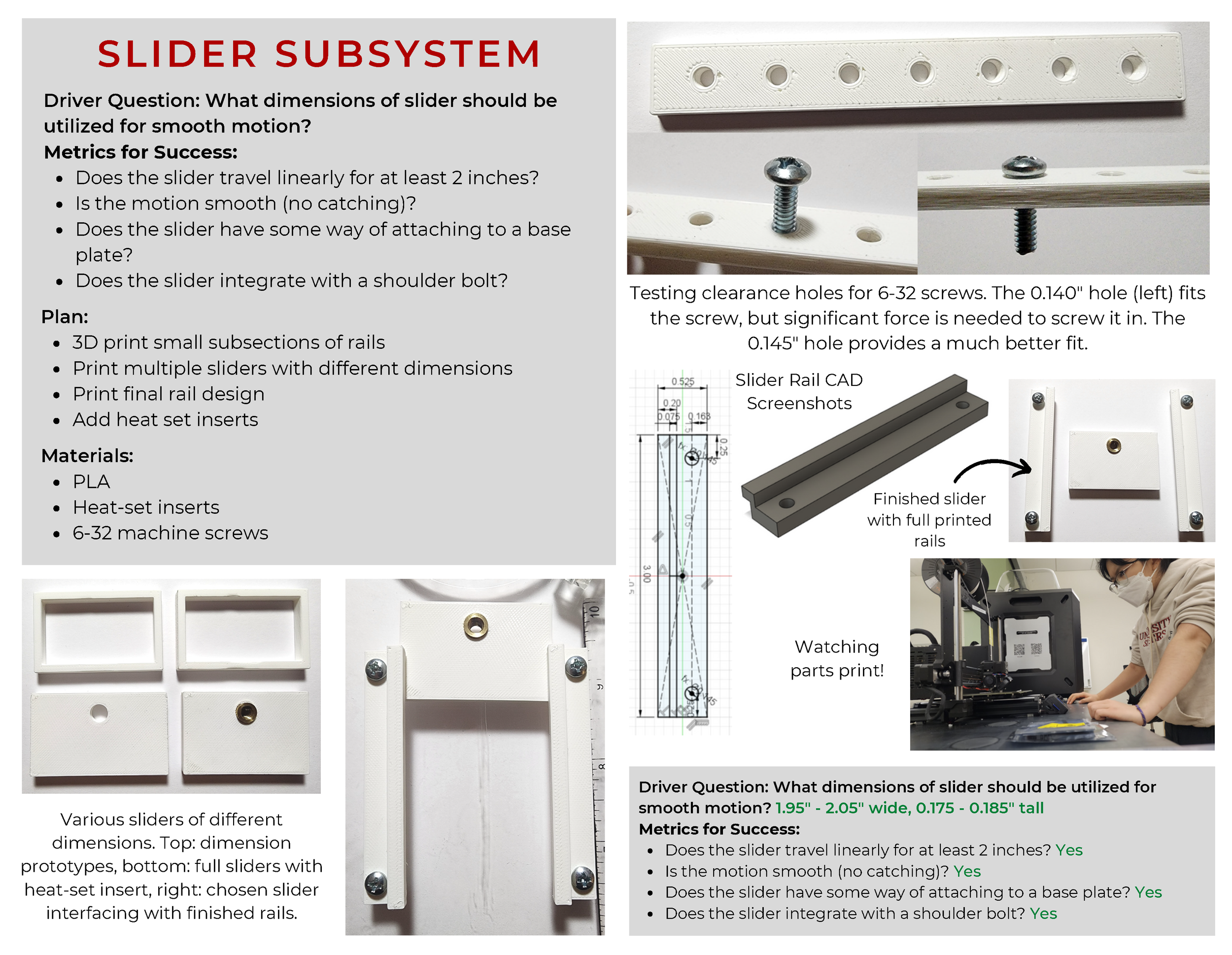

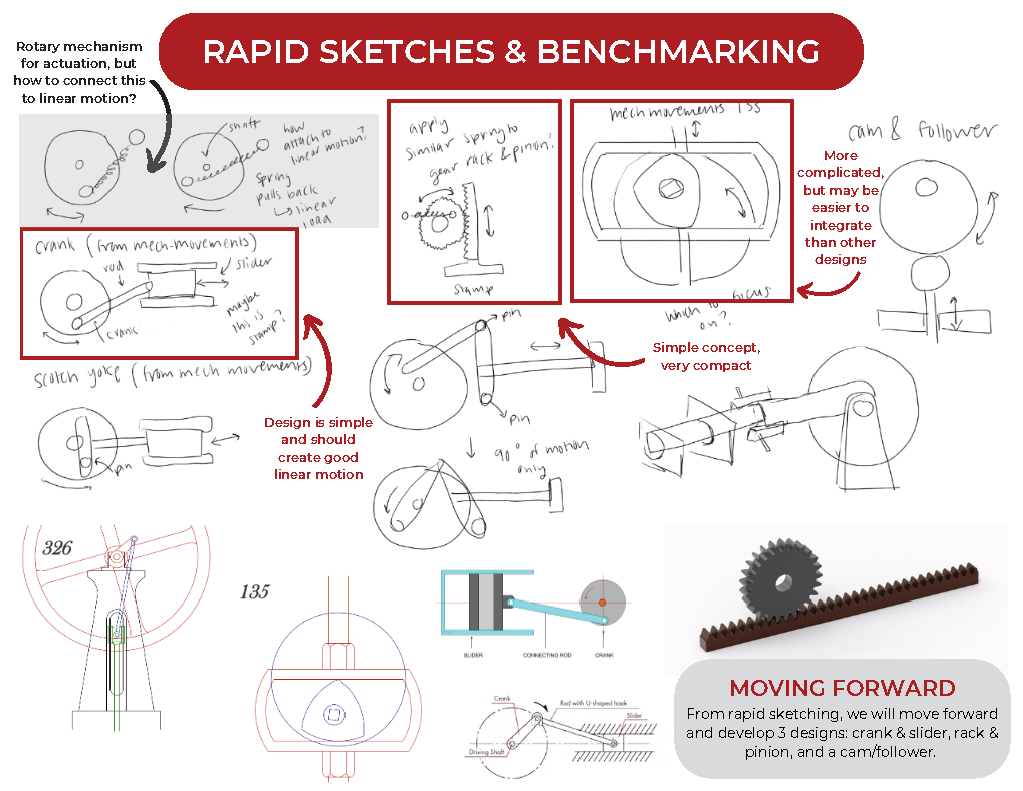

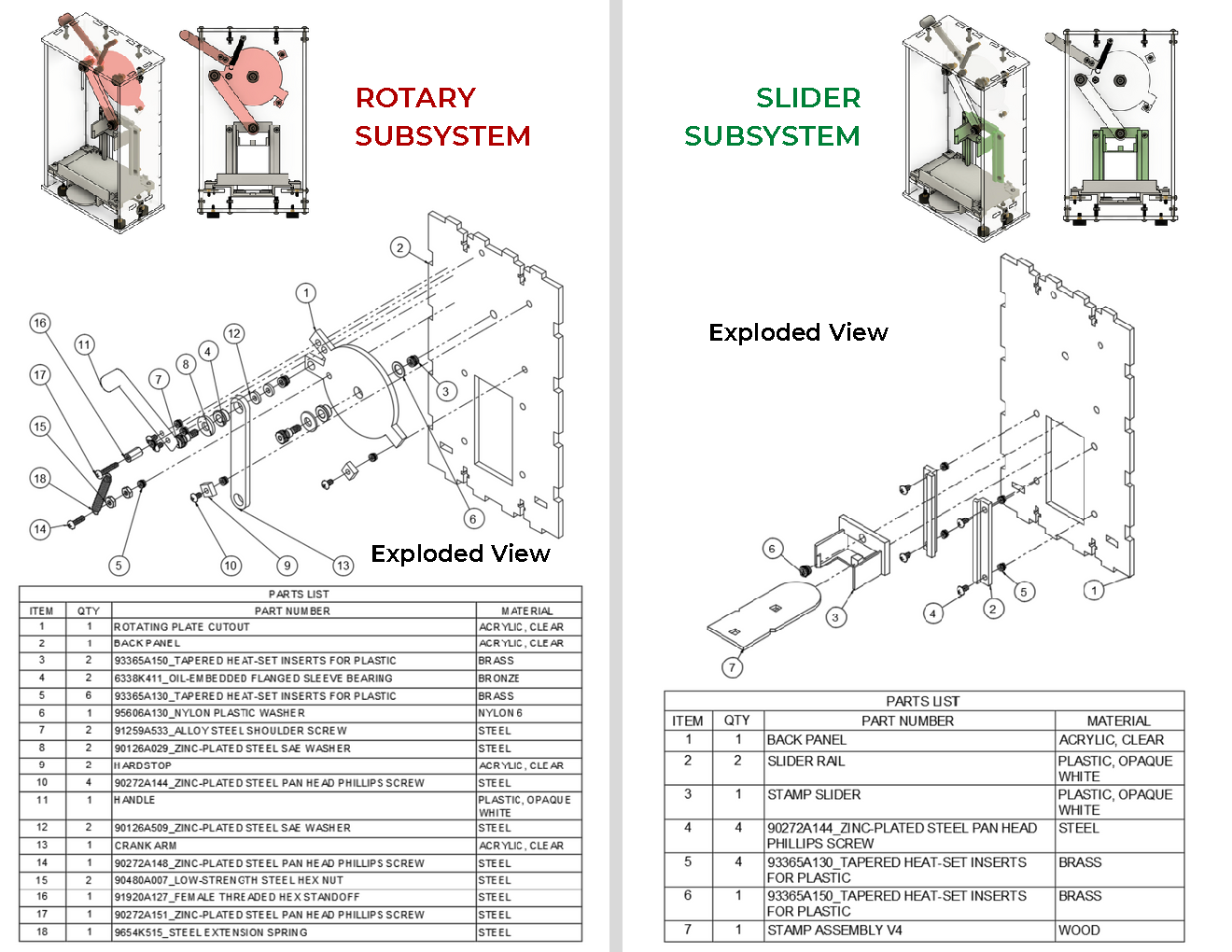

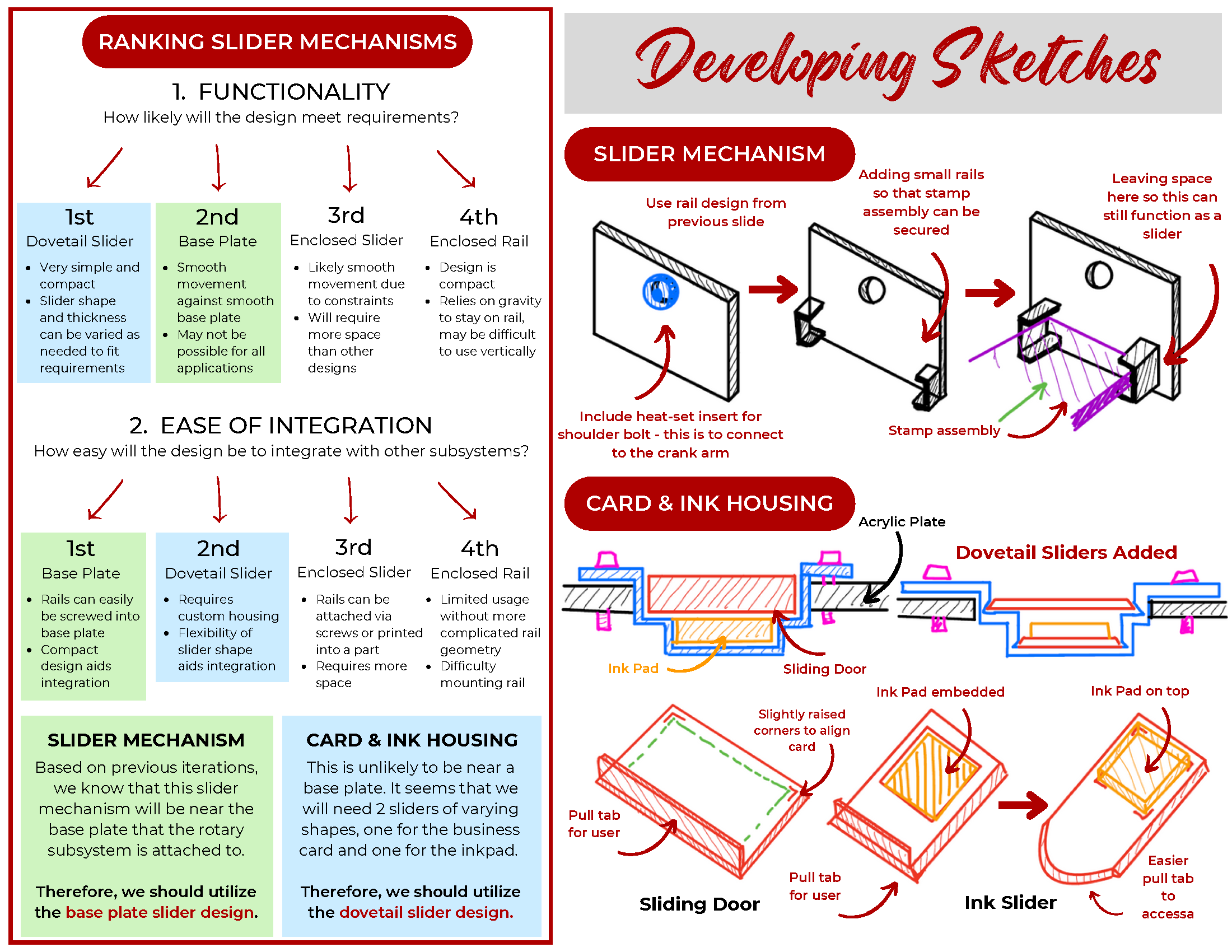

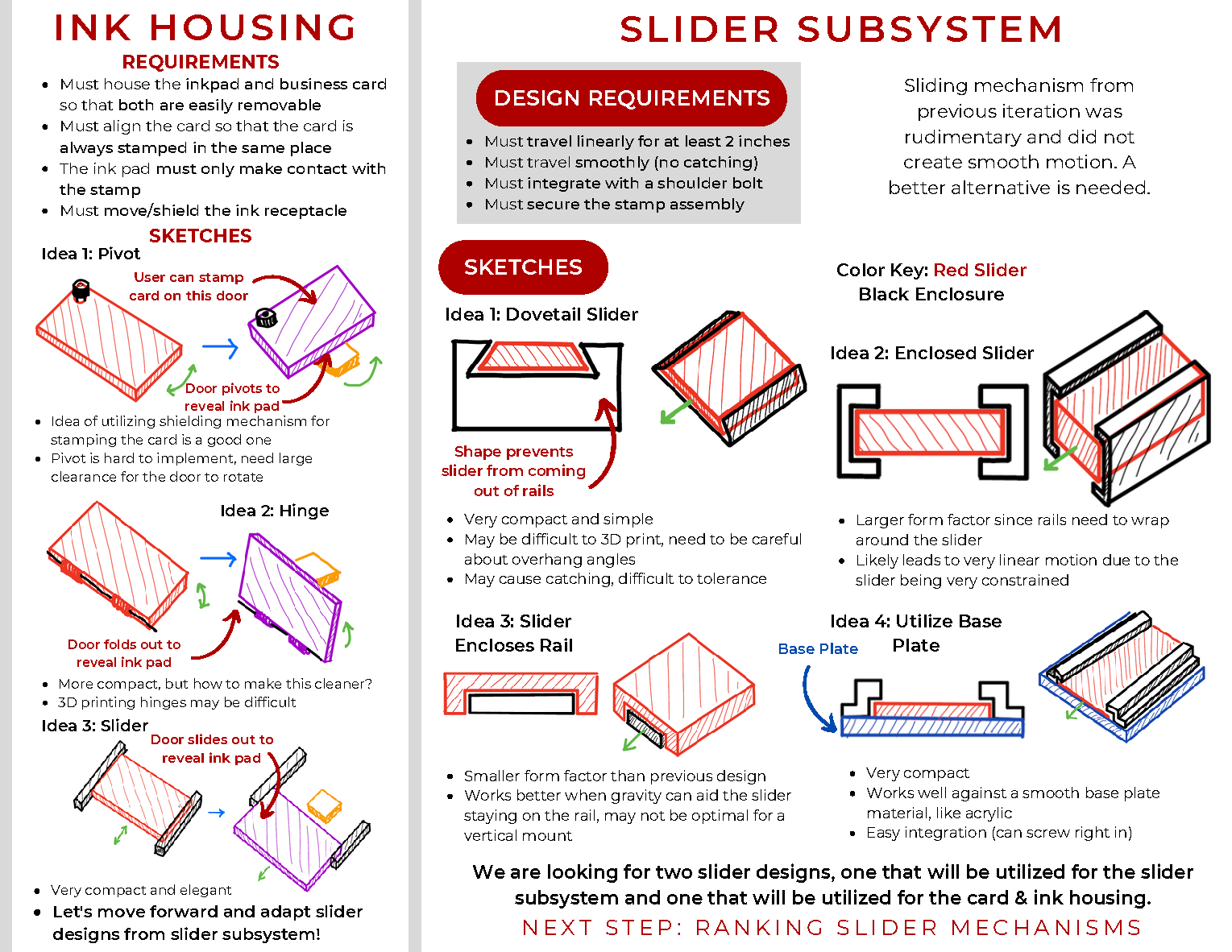

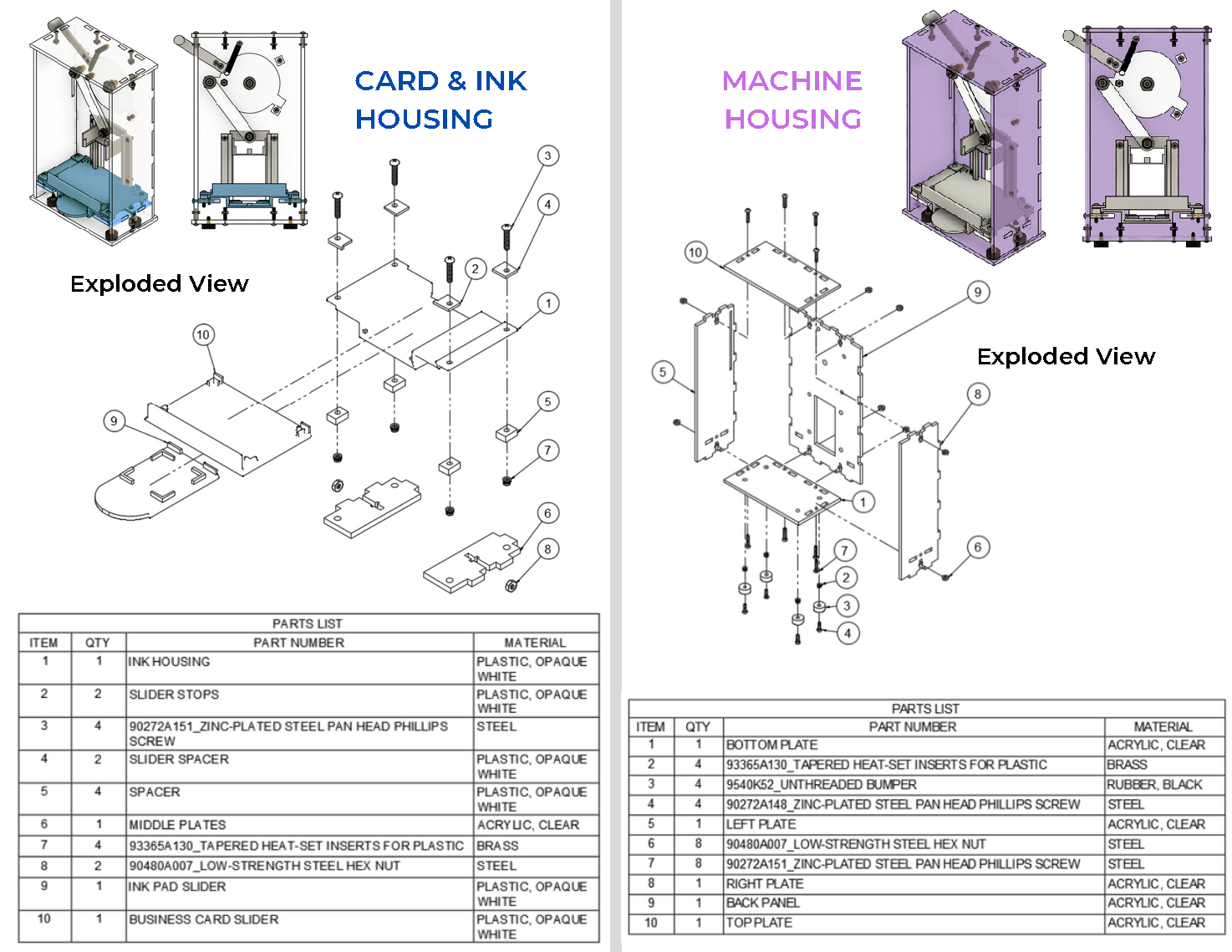

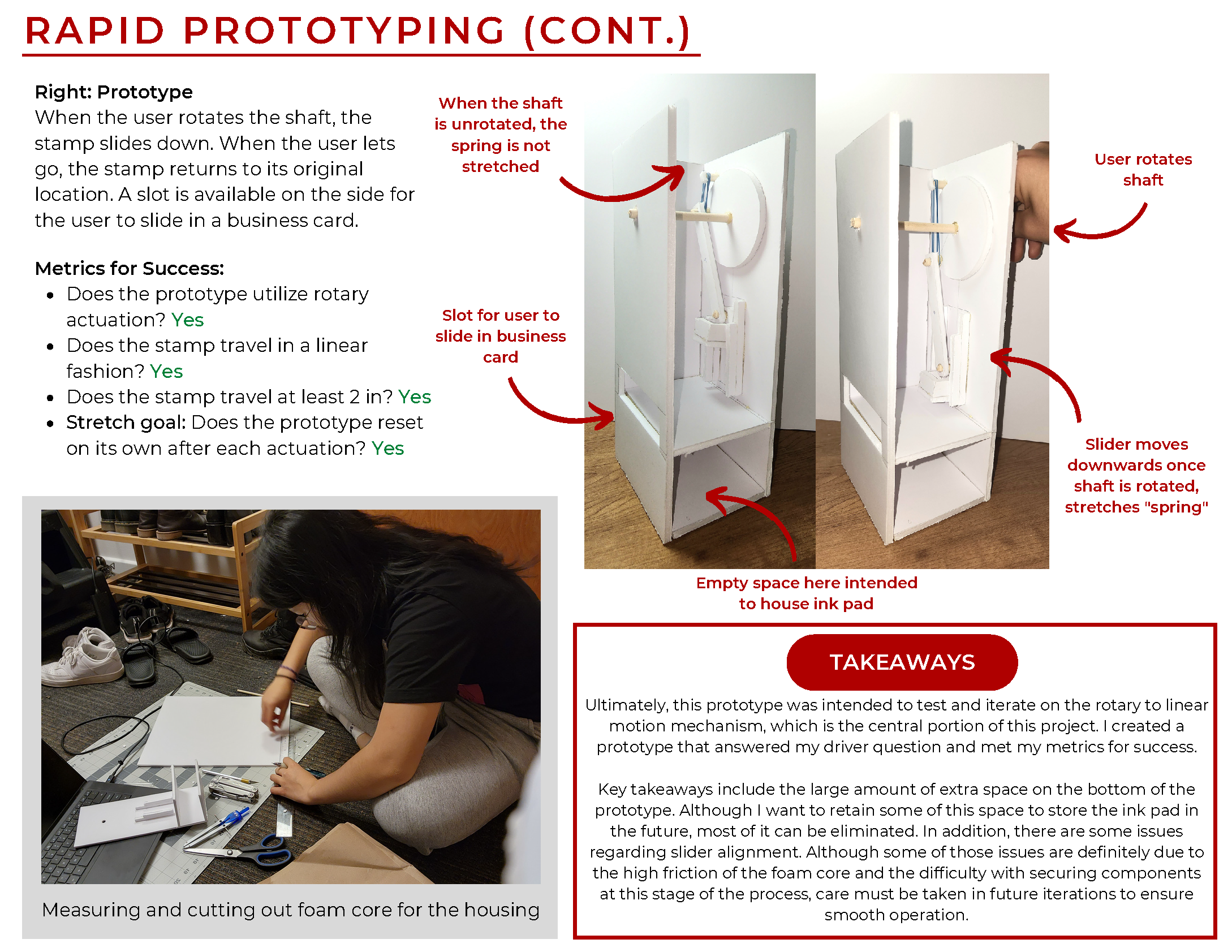

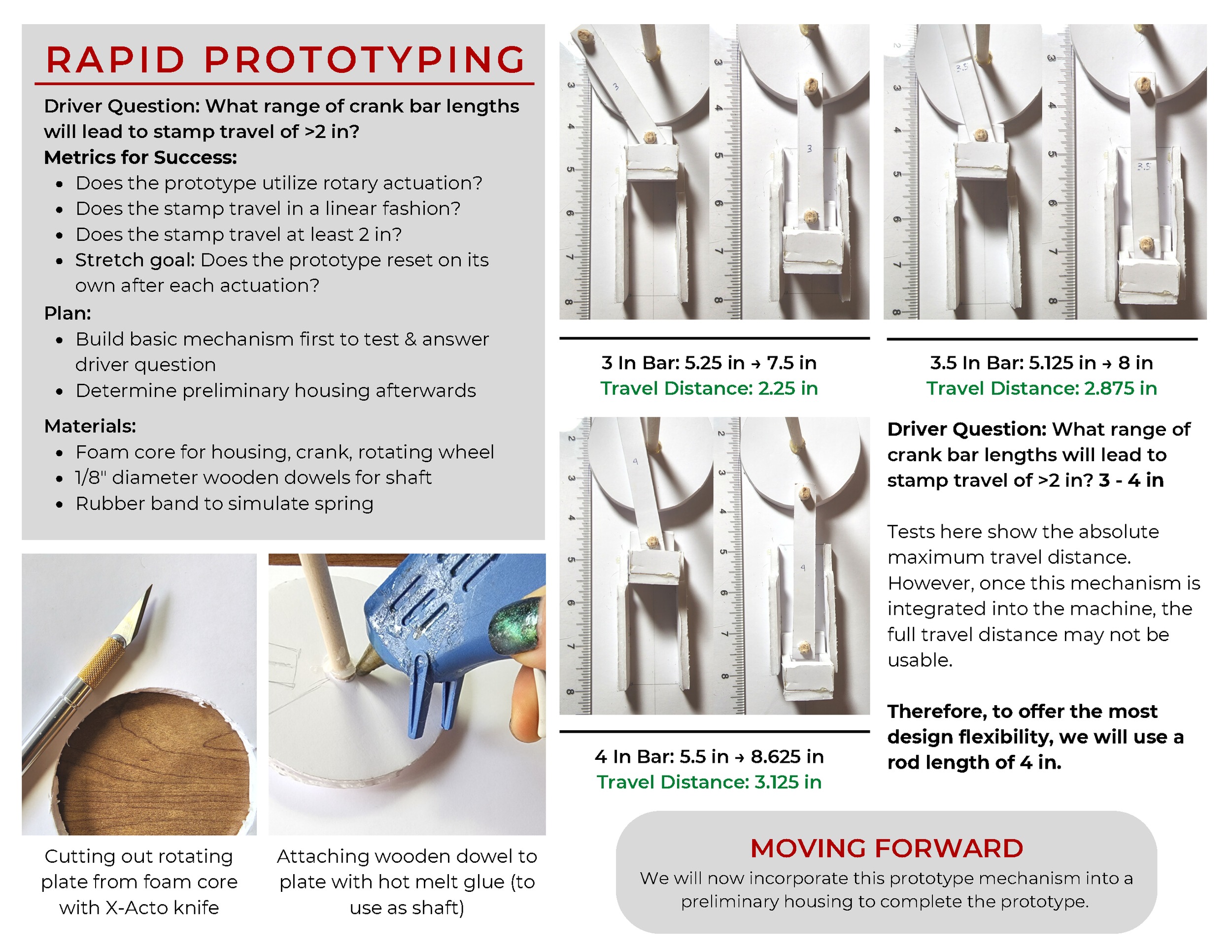

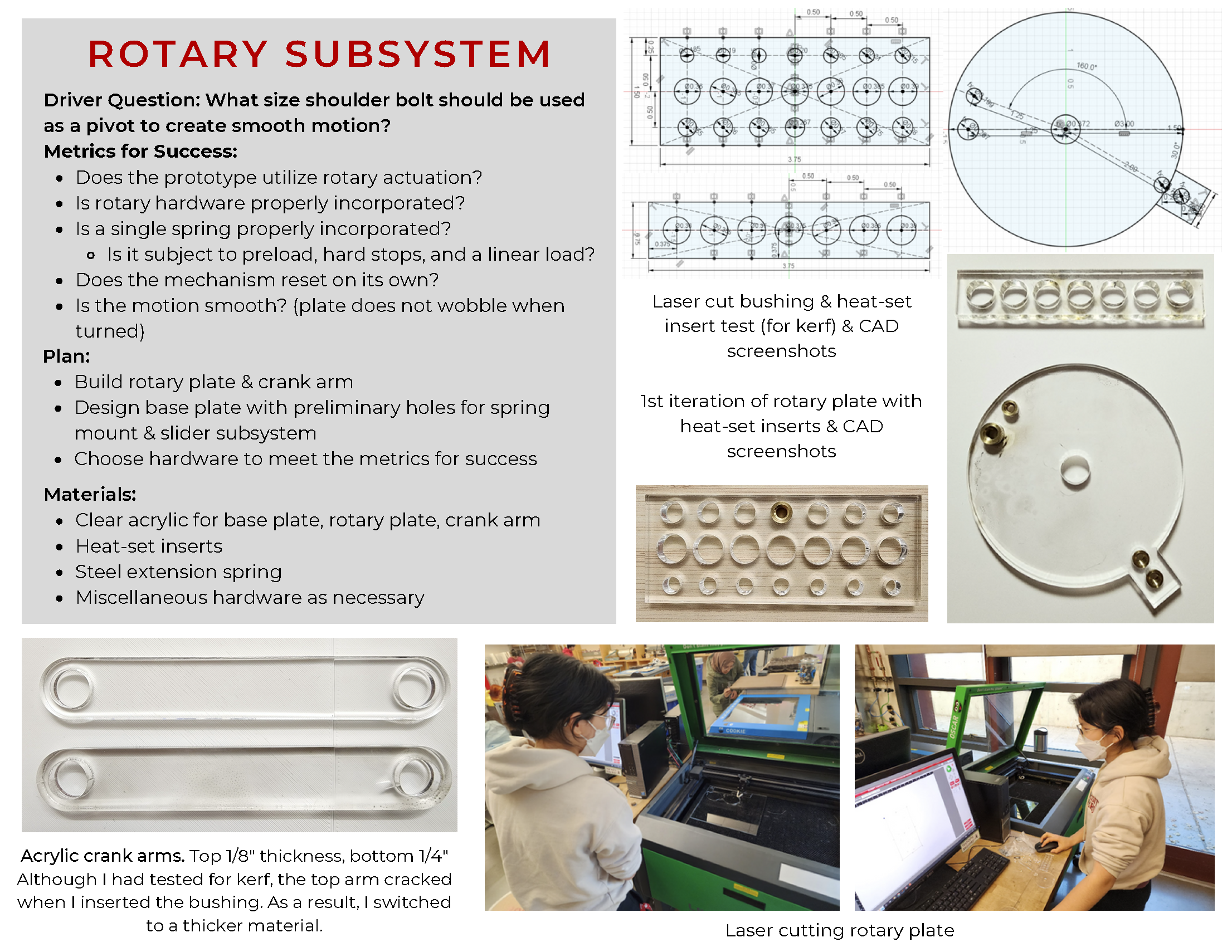

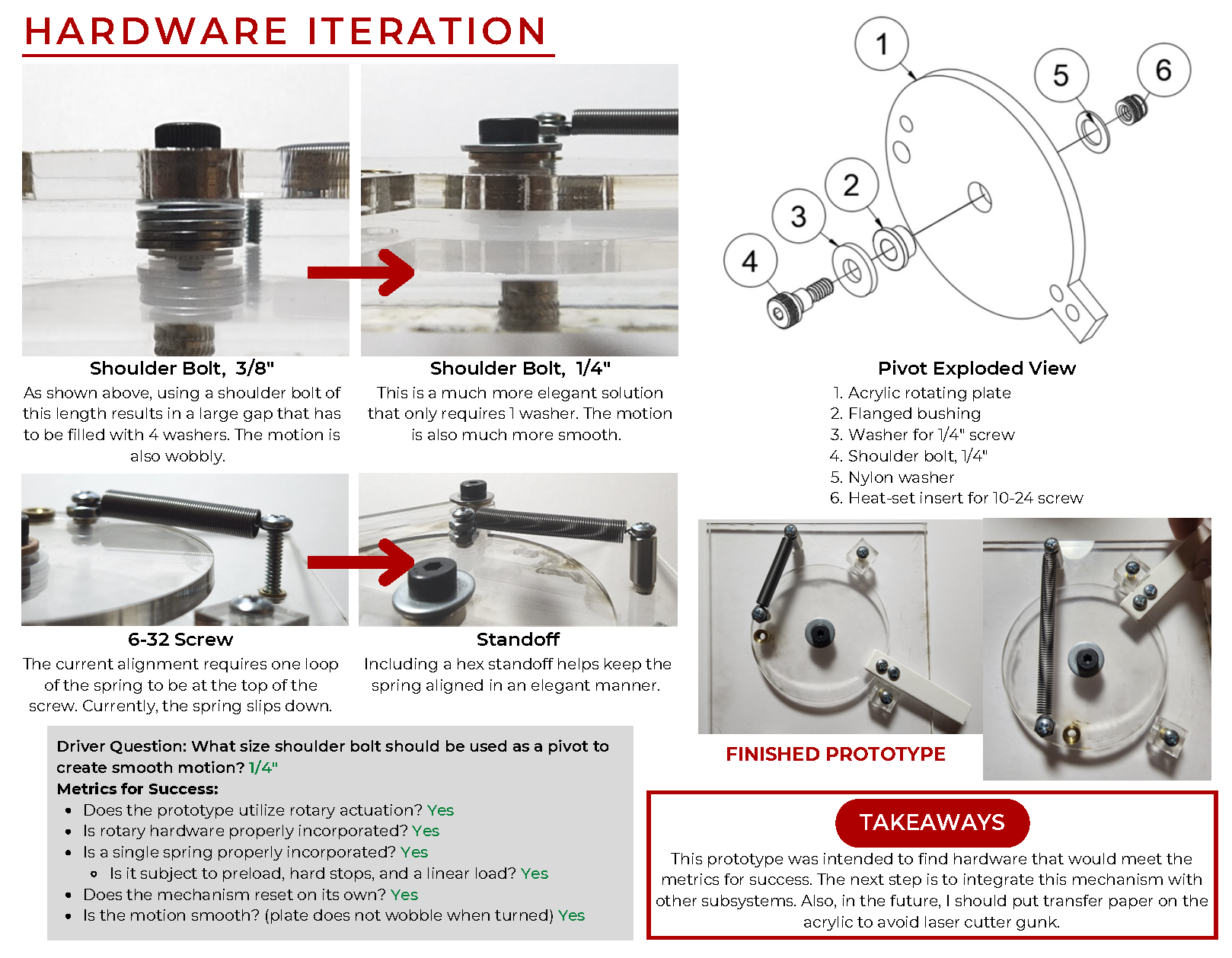

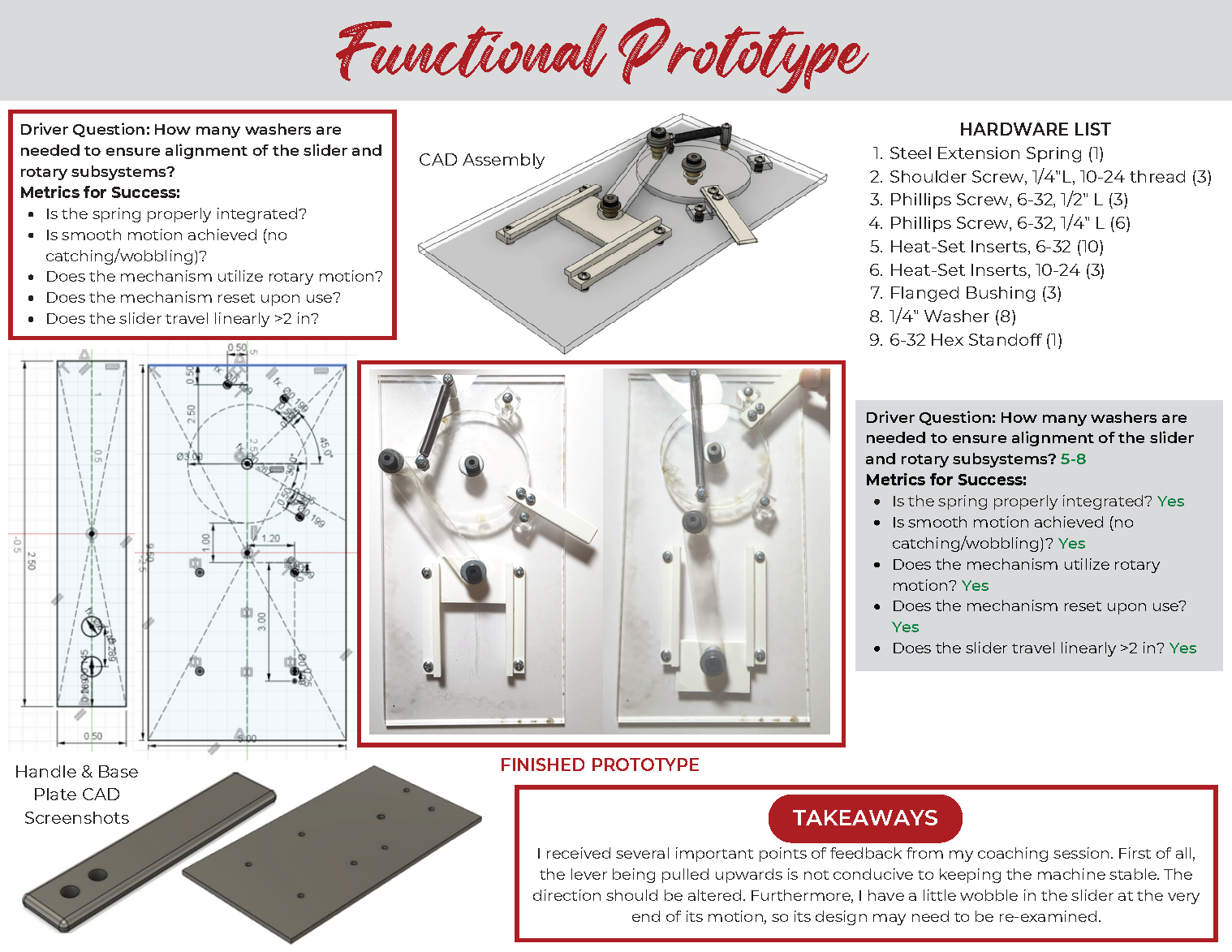

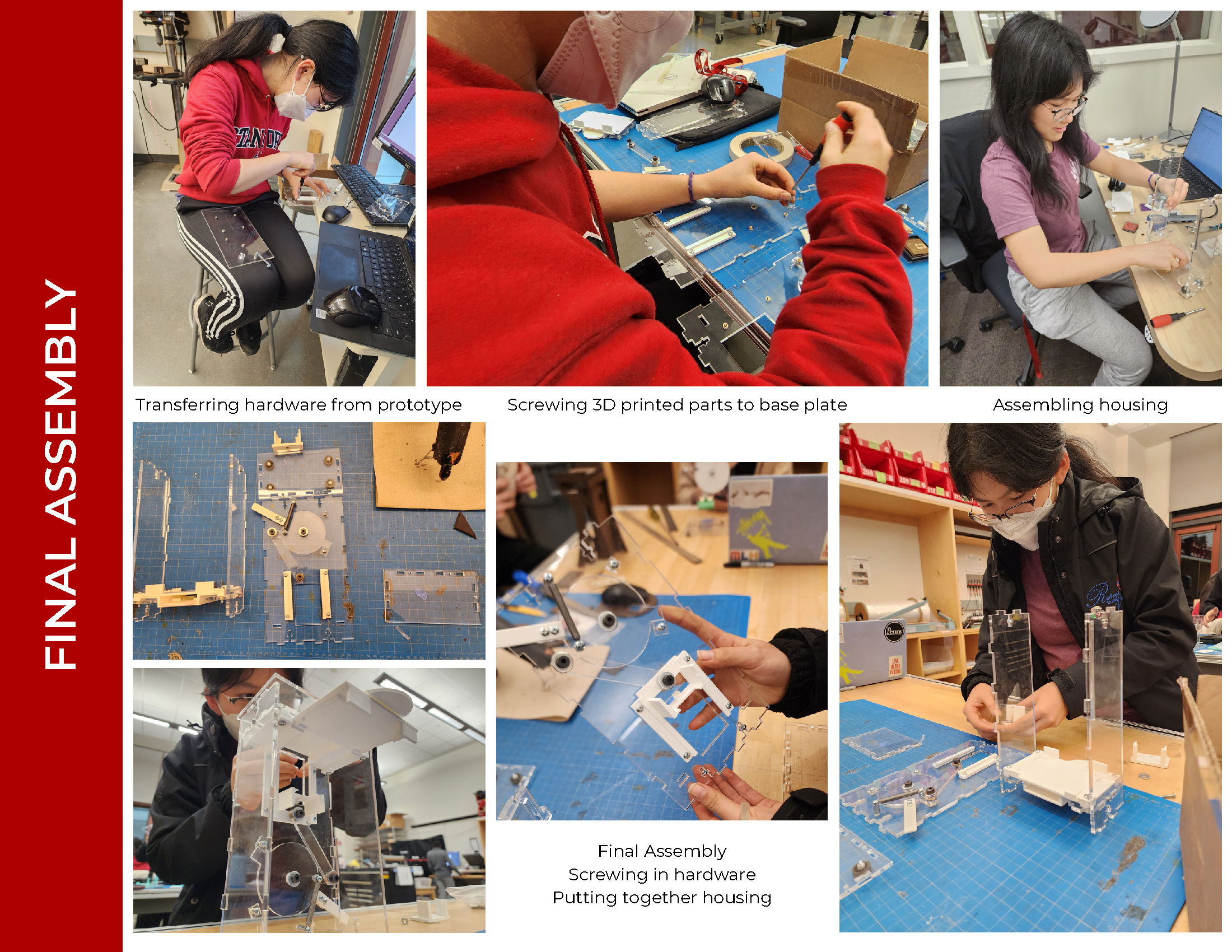

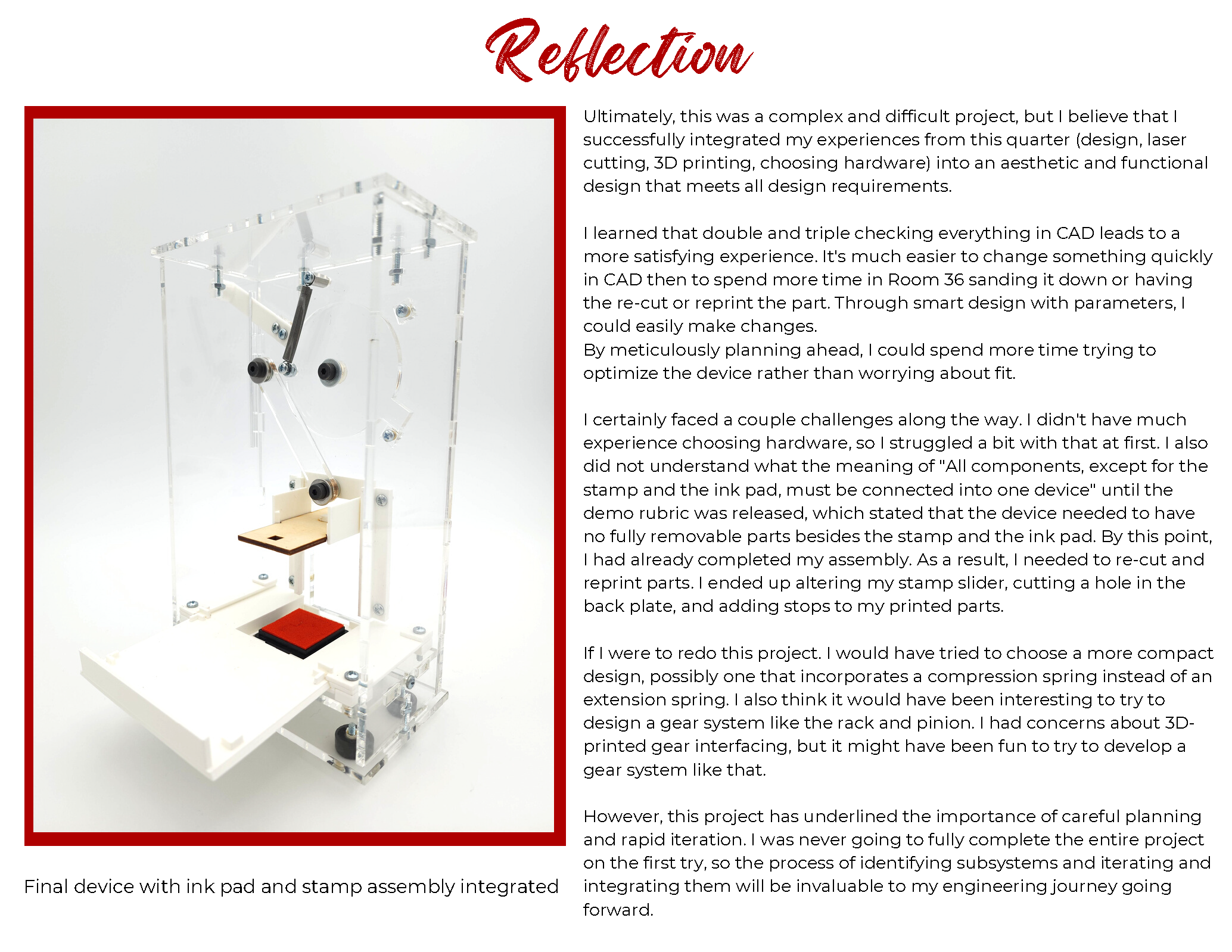

A machine designed to stamp business cards with interchangeable stamp designs. Creates linear motion using rotary input and resets after each actuation. Incorporates stock hardware and numerous prototyping practices. Created without the use of any adhesive and fully serviceable. Photo essay included below.
